The Database CI/CD Best Practice with Bitbucket

Wanna other VCS providers instead? 👉

Database change is a tricky part of the application development process: it usually involves multiple databases from different environments and cross-team collaboration, to add on top of it, databases are touch and go. It got us thinking: can we treat database the same way we treat application code?

DORA (DevOps Research & Assessment) pointed out that integrating database work into the software delivery process positively contributes to continuous delivery. It’s about time to make databases a part of the CI/CD cycle.

But how does it work, really?

A Complete Database CI/CD Workflow

Here, we present a complete Database CI/CD workflow with Bitbucket. It's similar with GitLab, GitHub or Azure DevOps.

database-devops-workflow-bitbucket

The developer creates a Merge Request containing the SQL migration script;
The team leader or another peer on the dev teams approves the change and merges the SQL script into a branch;
The merge event automatically triggers the release pipeline in Bytebase and creates a release ticket capturing the intended change;
(Optional) an approval flow will be auto matched based on the change risk and be followed via Bytebase’s built-in UI;
Approved scripts are executed gradually according to the configured rollout stages;
The latest database schema is automatically written back to the code repository after applying changes. With this, the Dev team always has a copy of the latest schema. Furthermore, they can configure downstream pipelines based on the change of that latest schema;
Confirm the migration and proceed to the corresponding application rollout.

Set Up Database CI/CD with Bitbucket in Bytebase (Free Plan)

Here's a step-by-step tutorial on how to set up this Database CI/CD with Bitbucket in Bytebase.

Step 1 - Run Bytebase in Docker and set the External URL generated by ngrok

ngrok is a reverse proxy tunnel, and in our case, we need it for a public network address in order to receive webhooks from VCS. ngrok we used here is for demonstration purposes. For production use, we recommend using Caddy.

ngrok-reverse-proxy

Login to ngrok Dashboard and follow its Getting Started steps to install and configure.
Run ngrok:
```
ngrok http 5678
```
and obtain the public URL https://b725-103-197-71-76.ap.ngrok.io:

Run Bytebase in Docker with the following command:

docker run --init \
  --name bytebase \
  --restart always \
  --publish 5678:8080 \
  --health-cmd "curl --fail http://localhost:5678/healthz || exit 1" \
  --health-interval 5m \
  --health-timeout 60s \
  --volume ~/.bytebase/data:/var/opt/bytebase \
  bytebase/bytebase:2.11.1 \
  --data /var/opt/bytebase \
  --port 8080

Bytebase is running successfully in Docker, and you can visit it via localhost:5678. Register an admin account and it will be granted the workspace admin role automatically.
Click the gear icon (Settings) on the top right. Click General under Workspace. Paste https://b725-103-197-71-76.ap.ngrok.io as External URL under Network section and click Update.
Bytebase is running successfully in Docker, and you can visit it via https://b725-103-197-71-76.ap.ngrok.io.

Step 2 - Add Bitbucket.org as a Git provider in Bytebase

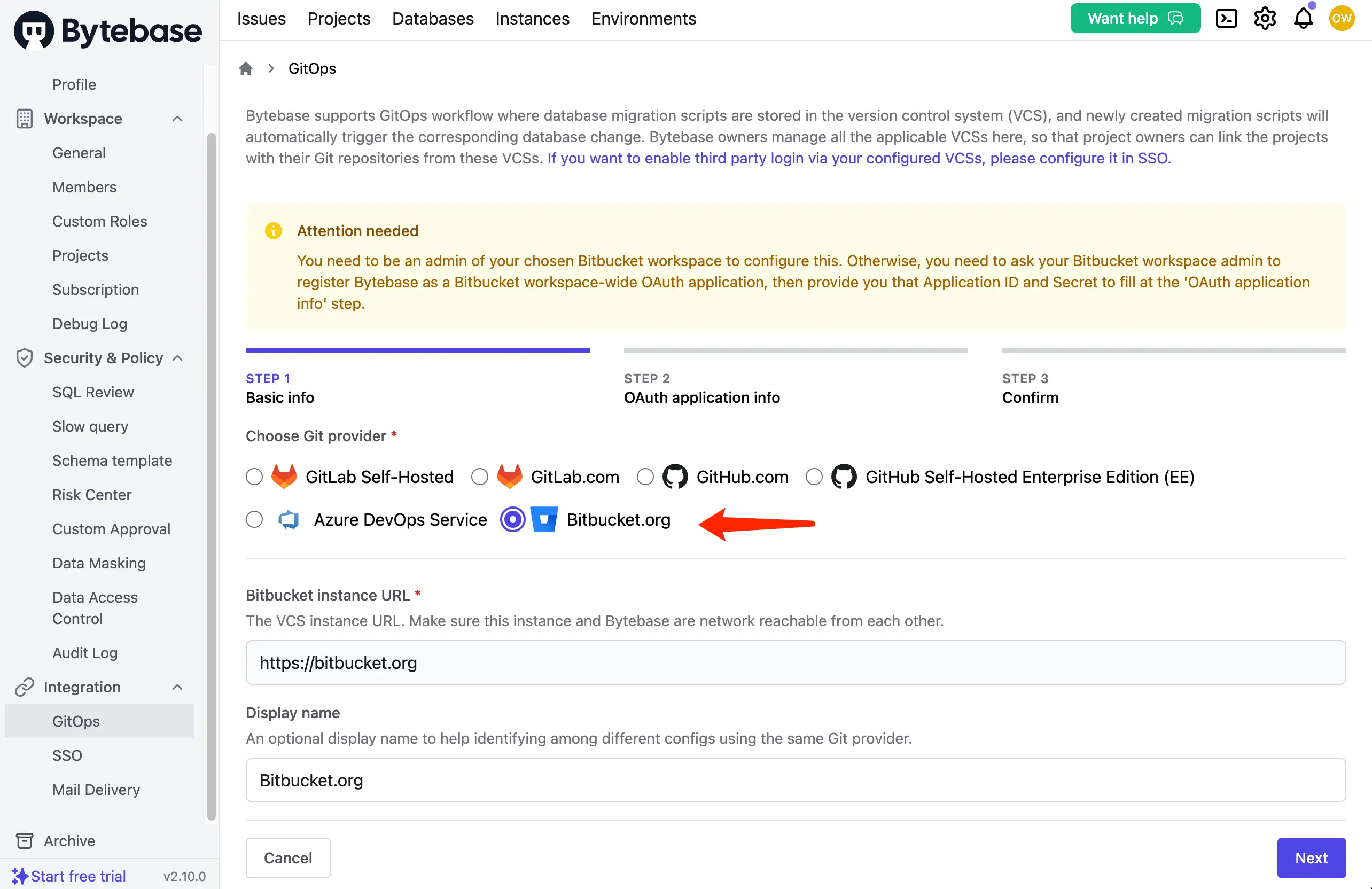

Visit Bytebase via your ngrok URL. Click gear icon (Settings) > Integration > GitOps, choose Bitbucket.org, and click Next. You will see STEP 2. Copy the Redirect URI.

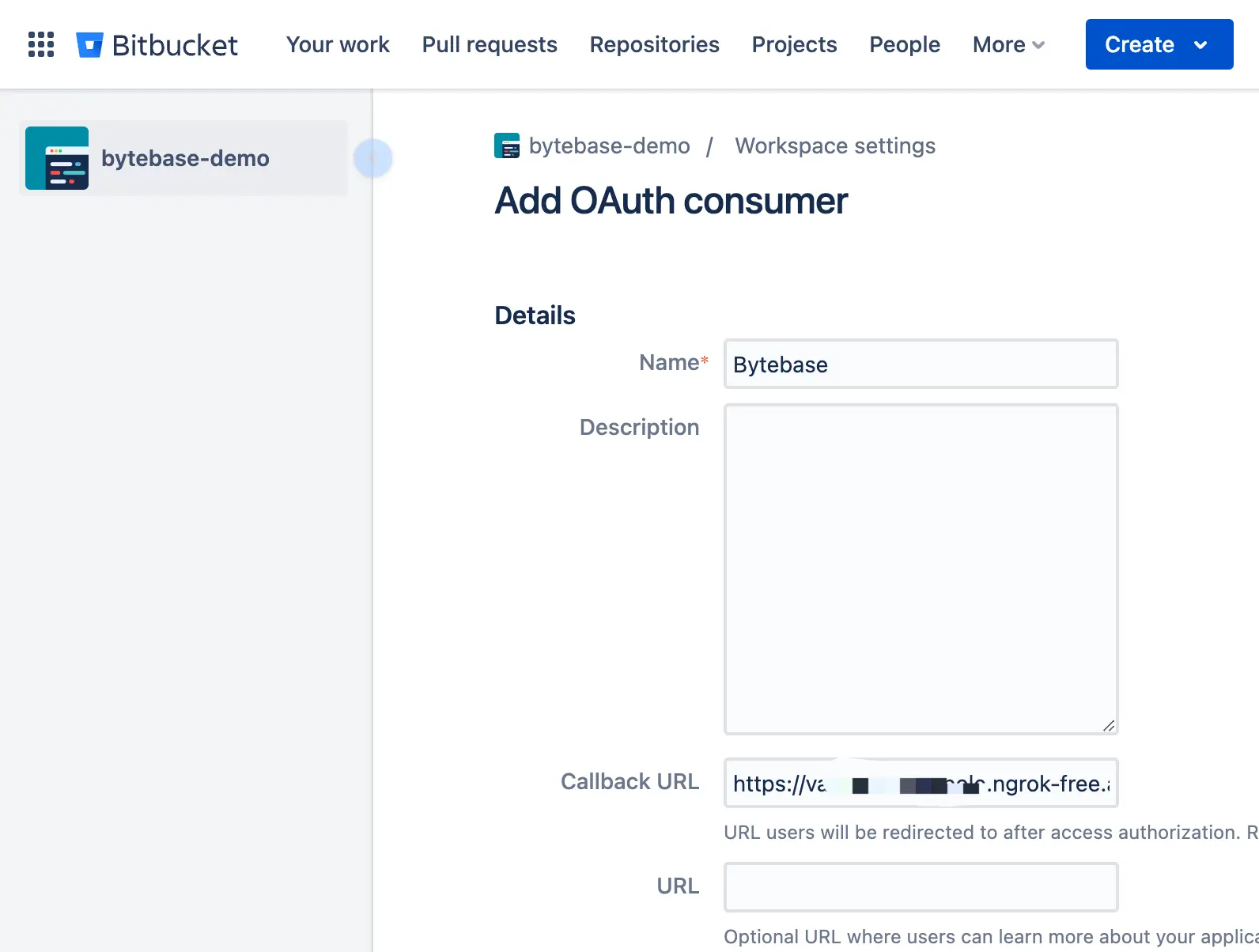

Go to https://bitbucket.org/, your account must be an workspace admin of the Bitbucket workspace (able to access the workspace Settings page). Go to the Settings page, then navigate to APPS AND FEATURES > OAuth consumers section and click Add a consumer. Fill in the following fields:
- Name: Bytebase
- Redirect URI: Copied from Bytebase GitOps config STEP 2
- Permissions: Account > Read, Webhooks > Read and write, Repositories > Write
Click Save.

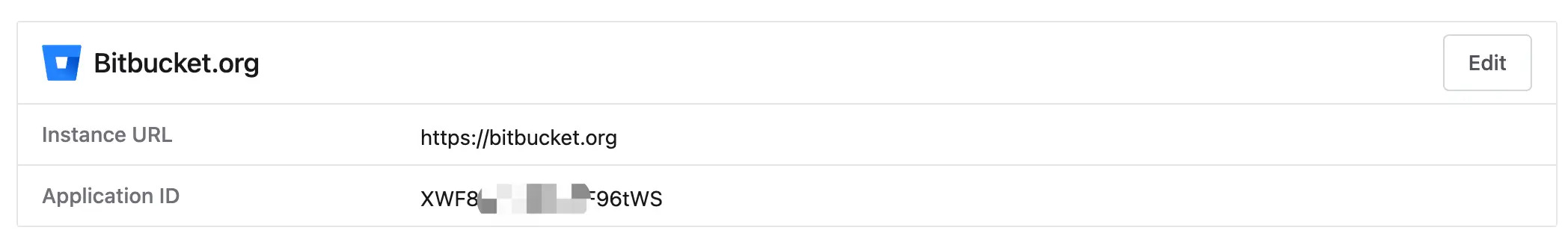

Copy the Key and Secret from the Bitbucket and paste them into the Bytebase GitOps config page. Click Next. Click Authorize on popup. You will be redirected to the confirmation page. Click Confirm and add, and the Git provider is successfully added.

Step 3 - Configure a GitOps Workflow in Bytebase

Go to bitbucket.org and create a new project bb-gitops-ngrok.

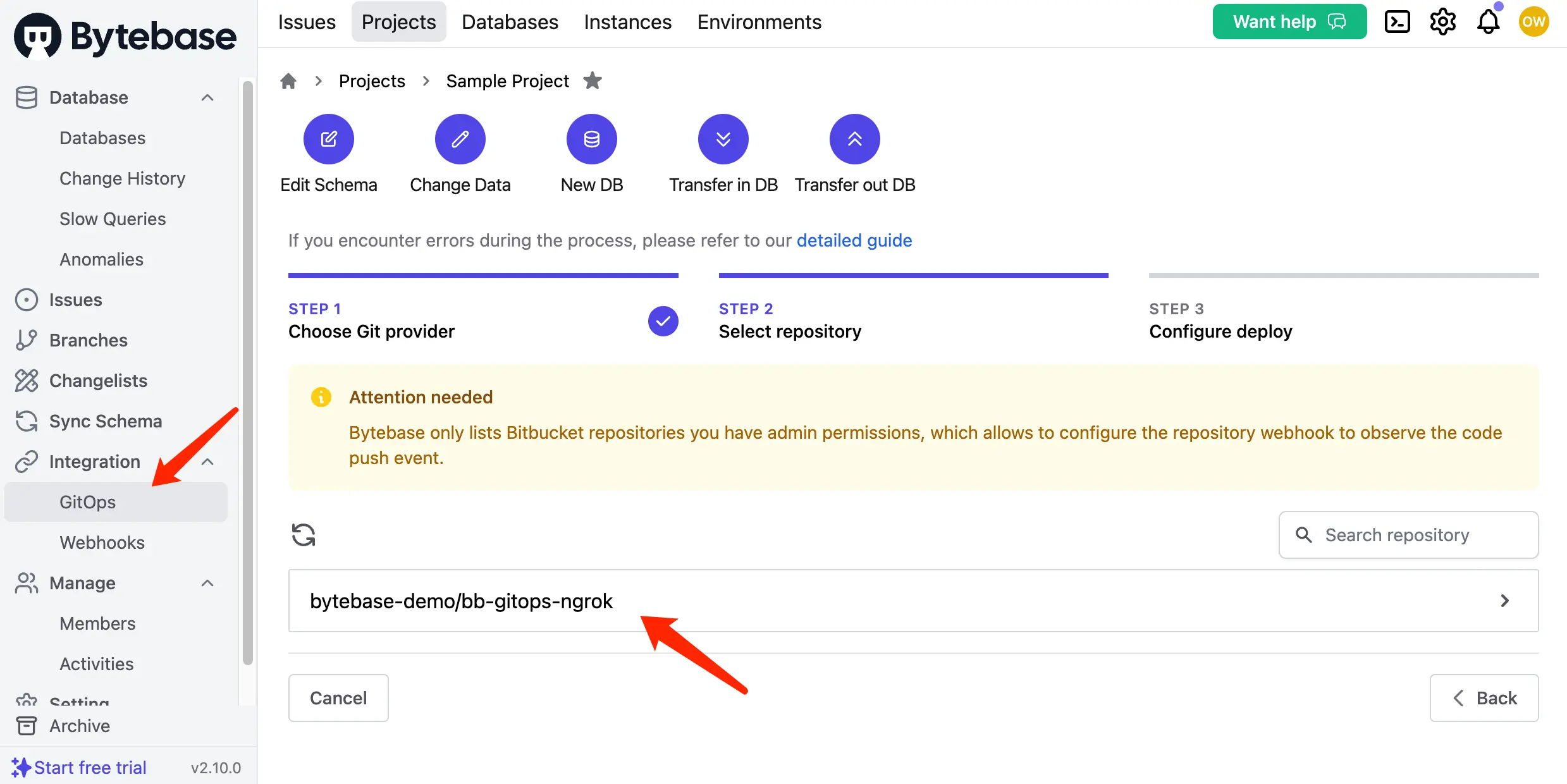

Go to Bytebase, go to the Sample Project. Click GitOps tab and choose GitOps workflow. Click Configure GitOps. Choose Bitbucket.org (the git provider you just configured) and the repository you just created.

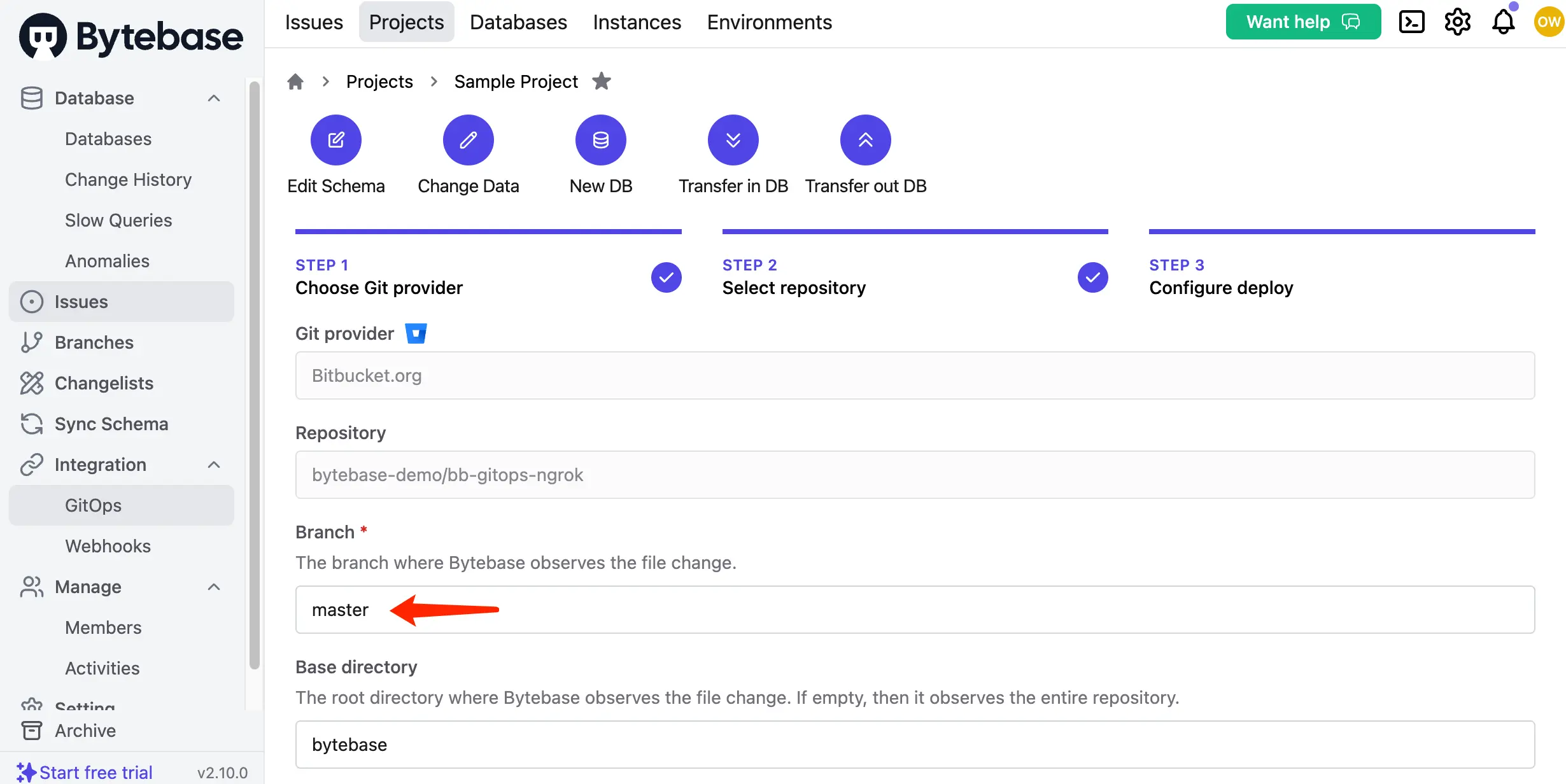

You'll be redirected to STEP 3. Change Branch to master, keep everything else as default, and click Finish.

Step 4 - Create a Pull Request to trigger issue creation

Go to bb-gitops-ngrok on Bitbucket. Create a new branch add-nickname-table-employee. On the new branch, create a subdirectory bytebase, and create a sub-subdirectory prod. Within the prod directory, create a file employee##202311012500##ddl##add_nickname_table_employee.sql. Copy the following SQL script into the file and commit the change.
```
ALTER TABLE "public"."employee"
ADD COLUMN "nick_name" text;
```

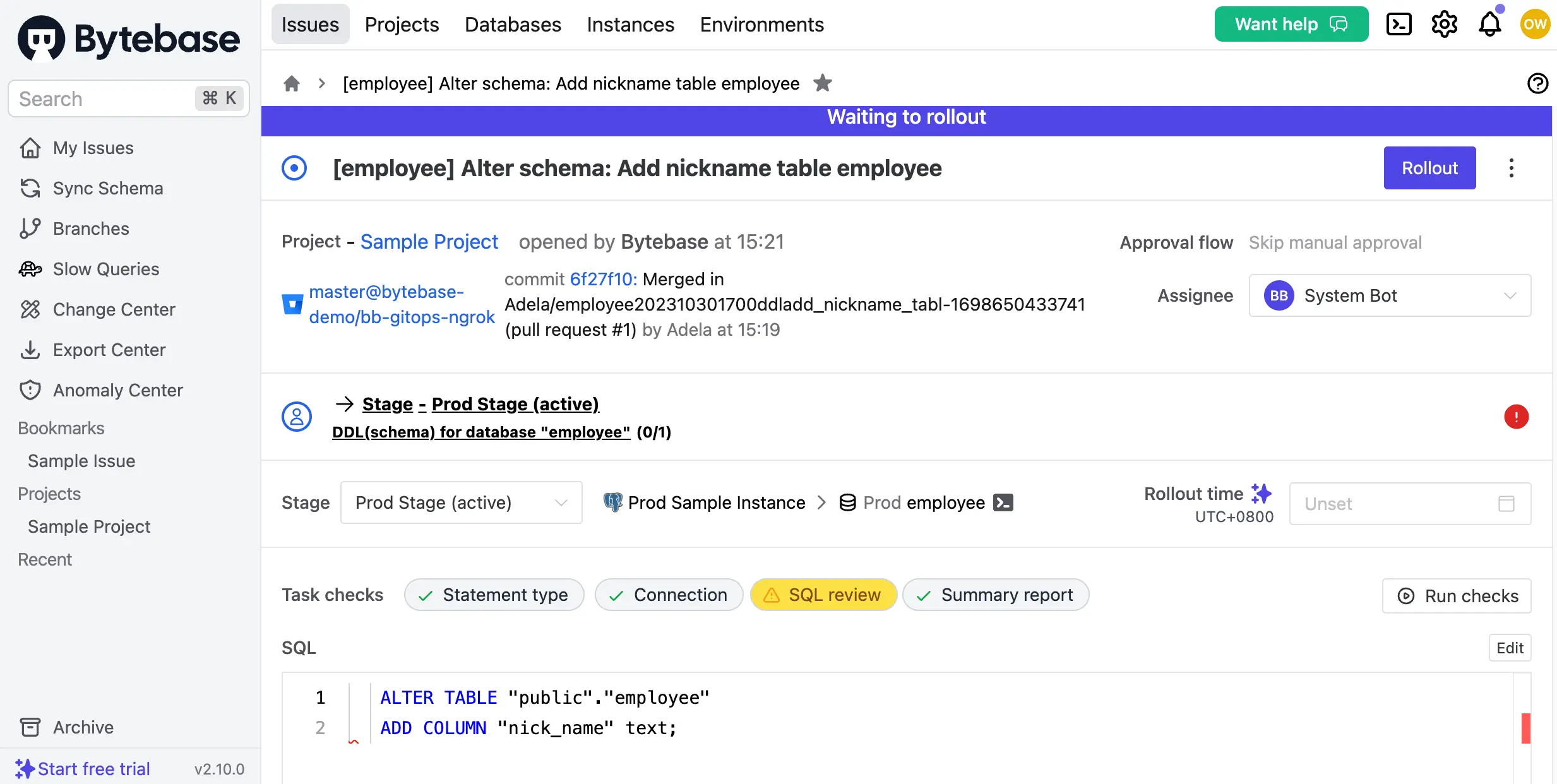

Create a pull request including the above commits and merge it. Go back to Bytebase, you'll see there is a new issue created by the pull request.
Click the issue to see the details. SQL review automatic checks failed. Click the warning, you'll see the details.

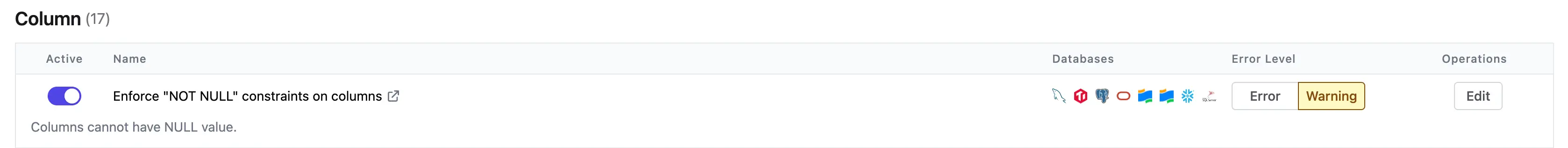

Go to Environments, you'll see there's a SQL Review policy attached with Prod. Click Edit, you'll see three activated SQL Review rules.

Update the SQL script and commit in a new branch and click Merge.

ALTER TABLE "public"."employee"
ADD COLUMN "nick_name" text NOT NULL DEFAULT '';

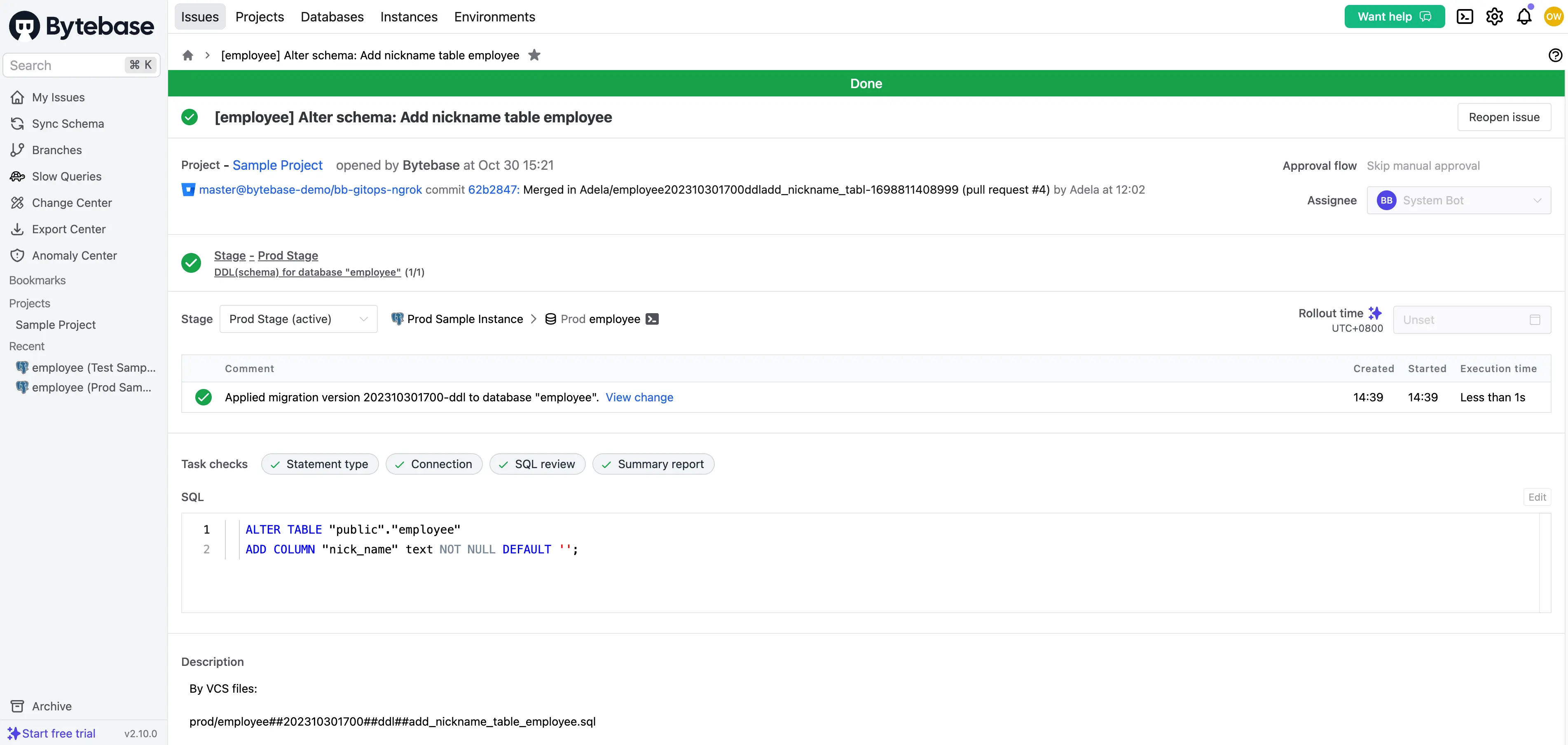

Go back to Bytebase, and refresh the issue. You'll see the SQL review passed. Because there is no approval flow or manual rollout configured. The issue rollouts automatically. You may click View change to see the diff.

Advanced Features (Enterprise Plan)

You may upgrade to Enterprise plan to explore more features.

Click Start free trial on the left bottom and upgrade to Enterprise plan, Go to Instances to Assign License for the existing two instances.

Manual Rollout

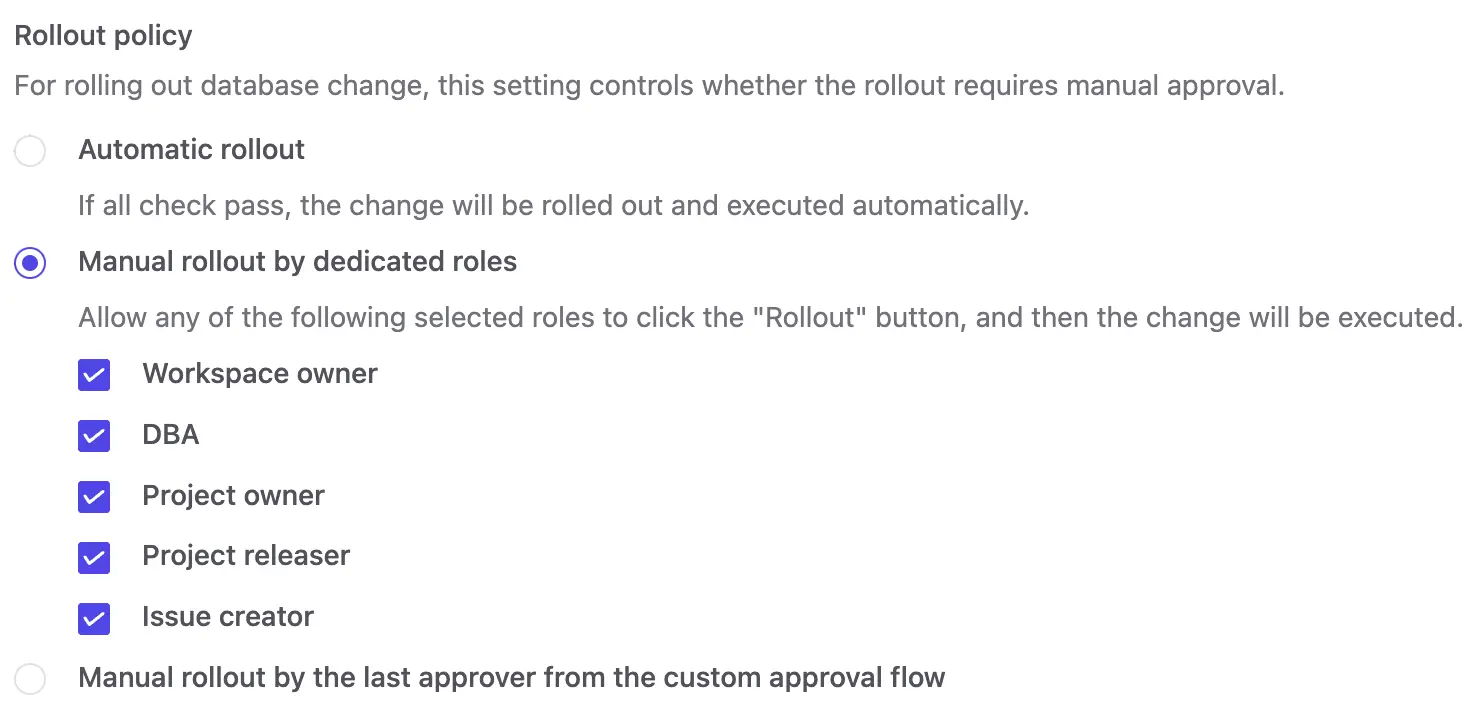

Go to Environments > 2.Prod, Find Rollout policy section, and choose Manual rollout > Require rolling out by dedicated roles.

bb-env-prod-manual-rollout

Custom Approval

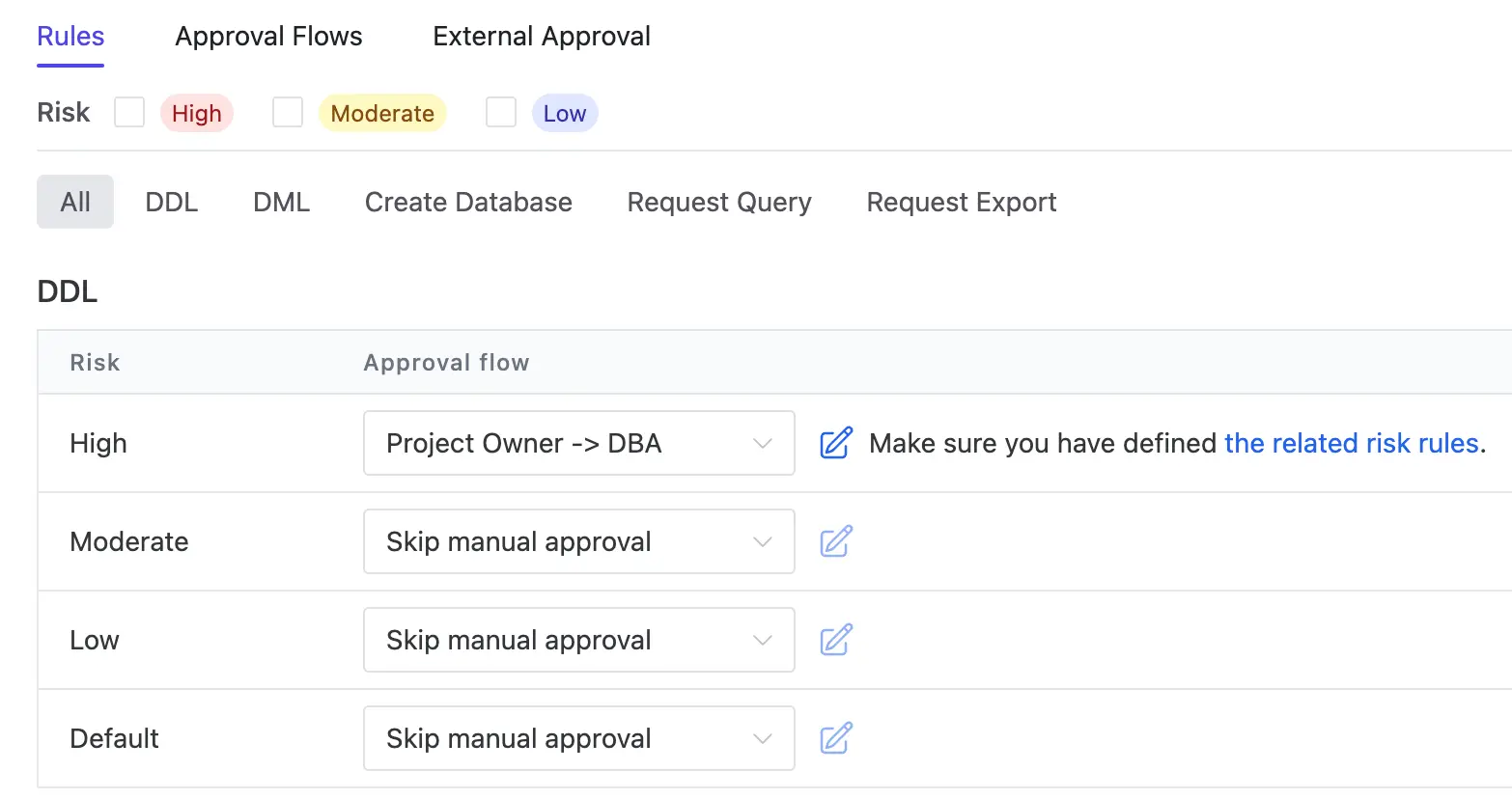

Go to Settings > Security & Policy > Custom Approval. Set Project Owner -> DBA as Approval flow for DDL > High Risk.

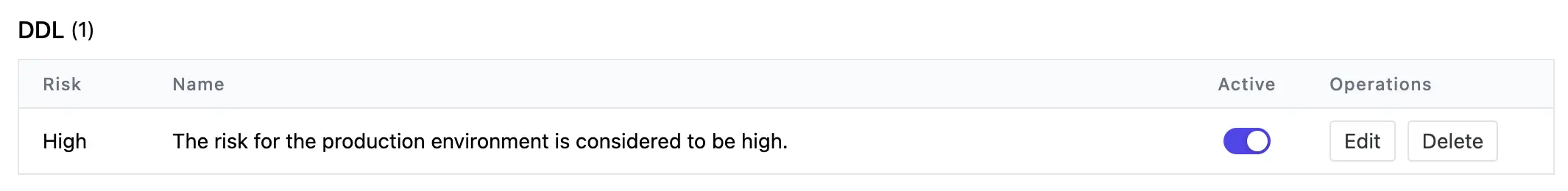

Go to Settings > Security & Policy > Risk Center. Click Add rule and click Load for the first template. Click Add.

LATEST Schema Write-back

After schema migration completes, Bytebase will write the latest schema back to the Git repository. So that the team always has a canonical source of truth for the database schema in Git.

Go back to Bitbucket, and create a new branch add-country-table-employee. Create a file employee##202311011700##ddl##add_country_table_employee.sql under bytebase/prod directory. Copy the following SQL script into the file and commit the change.
```
ALTER TABLE "public"."employee"
ADD COLUMN "country" text NOT NULL DEFAULT '';
```
Go back to Bytebase, and go to the newly created issue. Because of the settings we made above, it matches the approval flow Project Owner -> DBA,
After following the approval flow to click Approve, the banner will show Waiting for Rollout instead. The Assignee then can click Rollout.
Go back to Bitbucket, you'll notice there's a new file .employee##LATEST.sql under bytebase/prod/ with the latest schema written back by Bytebase.

Schema Drift

Bytebase has built-in schema drift detection to detect unexpected schema changes. Let's use the SQL Editor Admin Mode to simulate this.

Click terminal icon (SQL Editor) on the top right. You'll be redirected to SQL Editor. Click Admin mode. Everything you do in this mode is the same as connecting directly to the server, which is not recorded by Bytebase.

Select (Prod) employee on the left, and paste and run the following script:

ALTER TABLE "public"."employee"
    ADD COLUMN "city" text NOT NULL DEFAULT '';

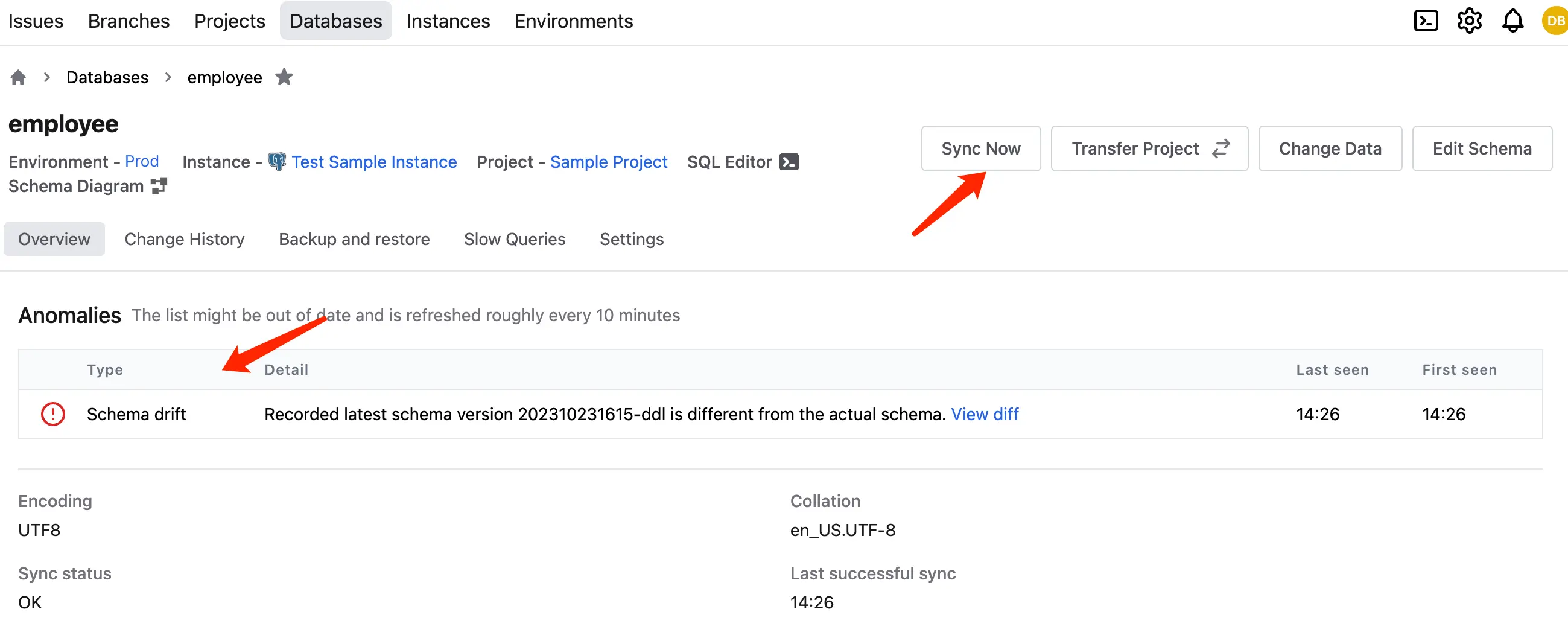

Go back to Bytebase Console, and click Databases > employee under Prod. Click Sync Now. After seeing the success message, refresh the page. You'll see the schema drift. You may configure auto scan on instance detail page to avoid manual sync.
Go to Anomaly Center, and you'll see the Schema drift there too.

Summary

Now with Bytebase, you have a complete Database CI/CD workflow with Bitbucket. You can apply this workflow to your own project and customize it to fit your needs. If you have any questions, please feel free join and discuss in Discord.
